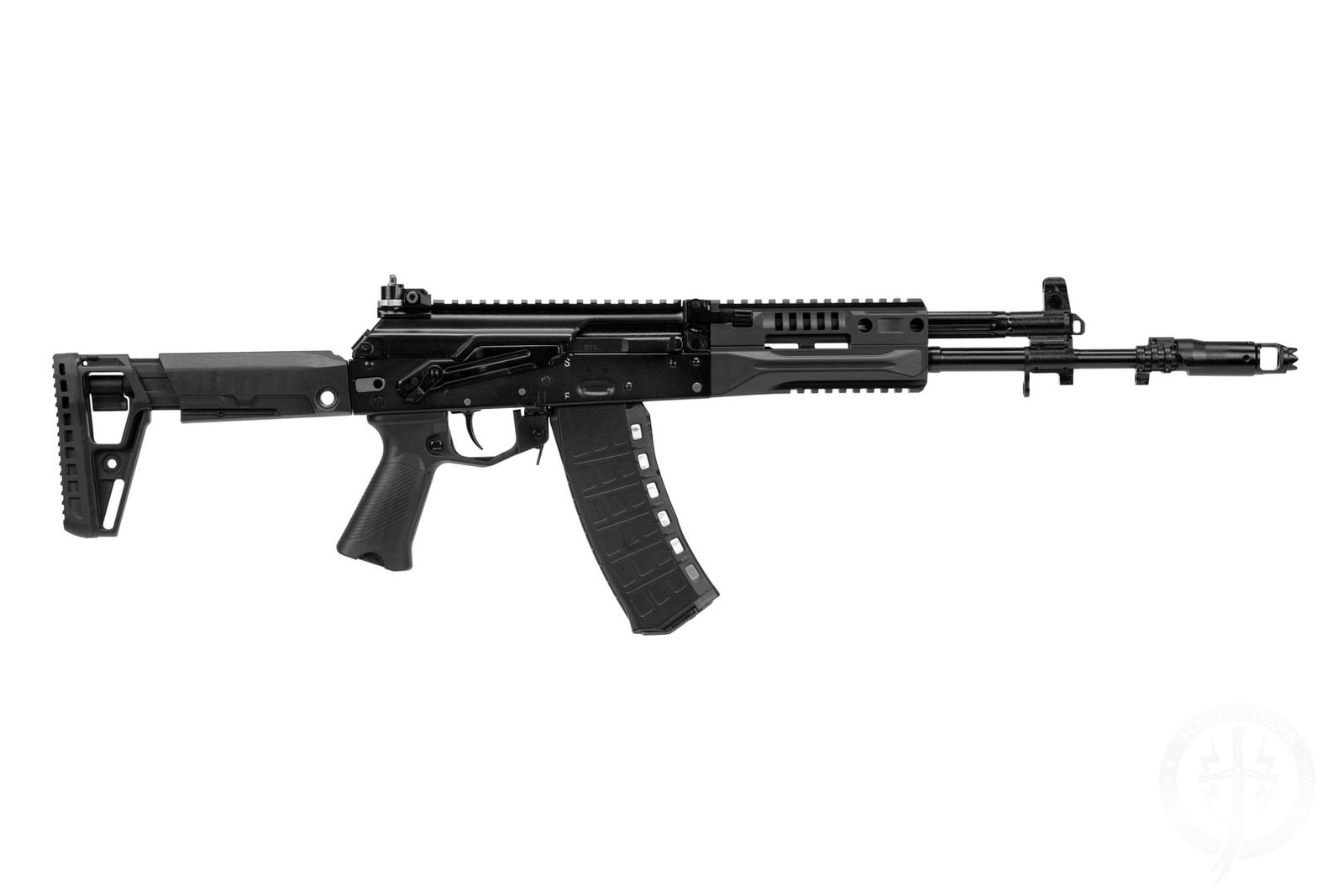

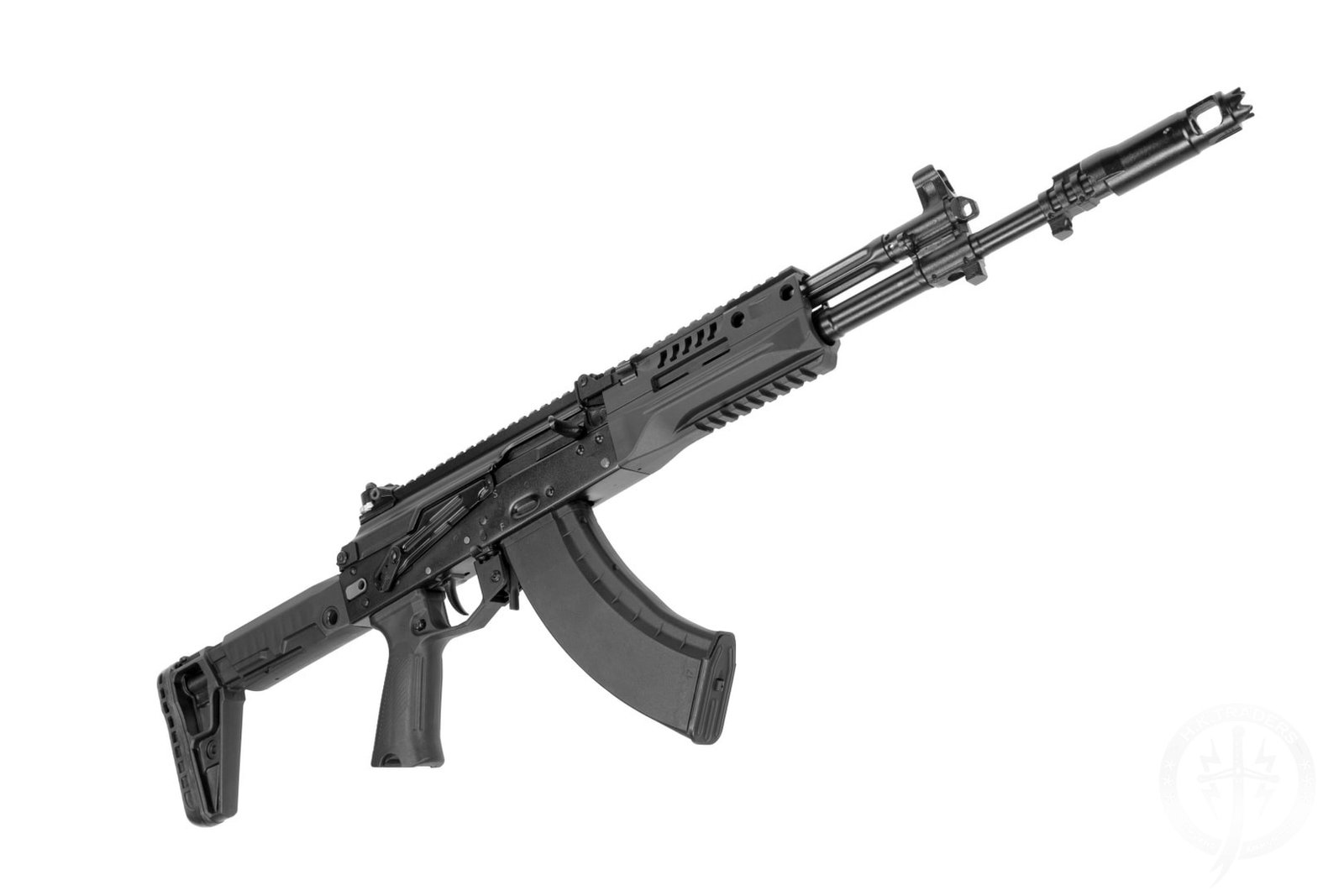

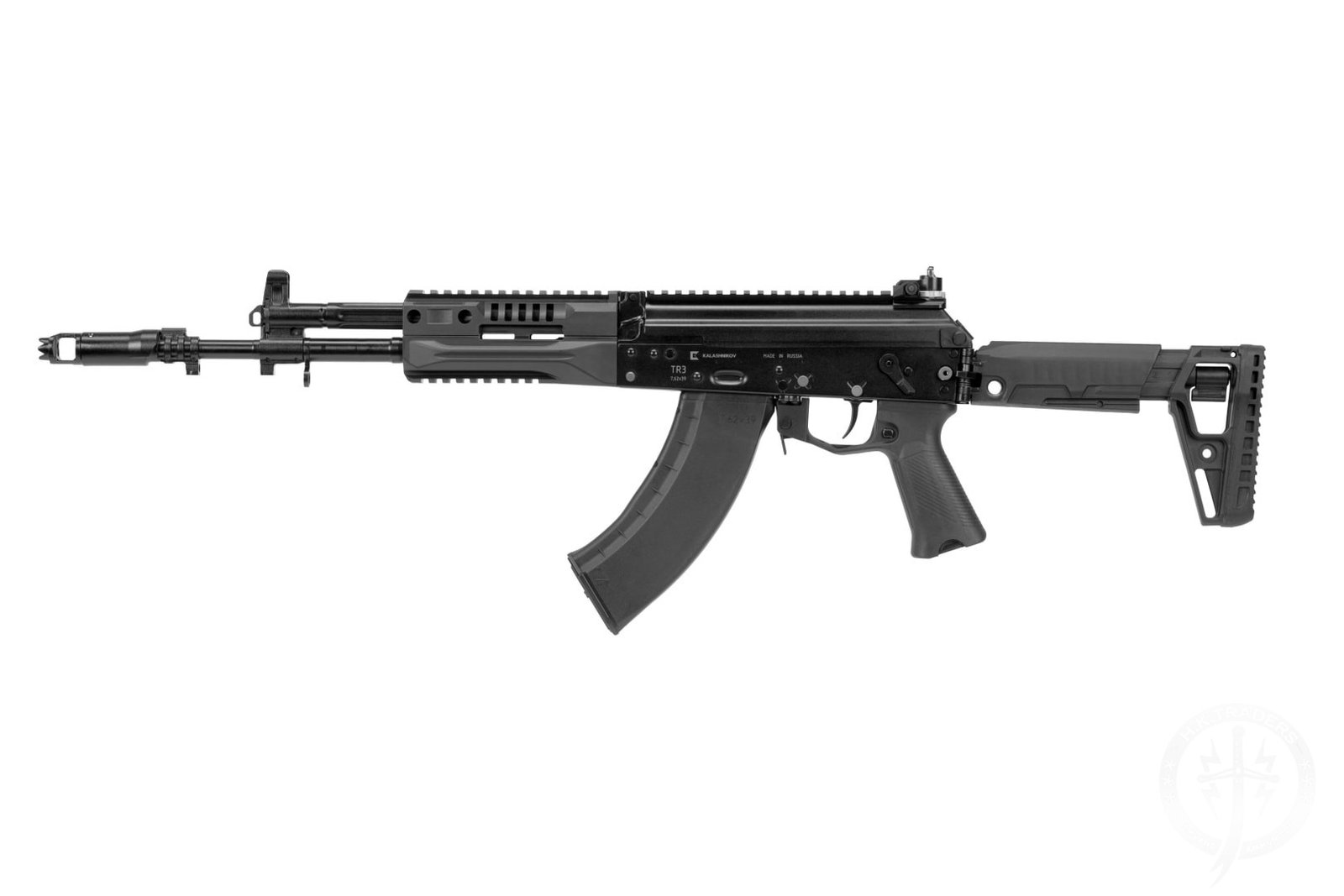

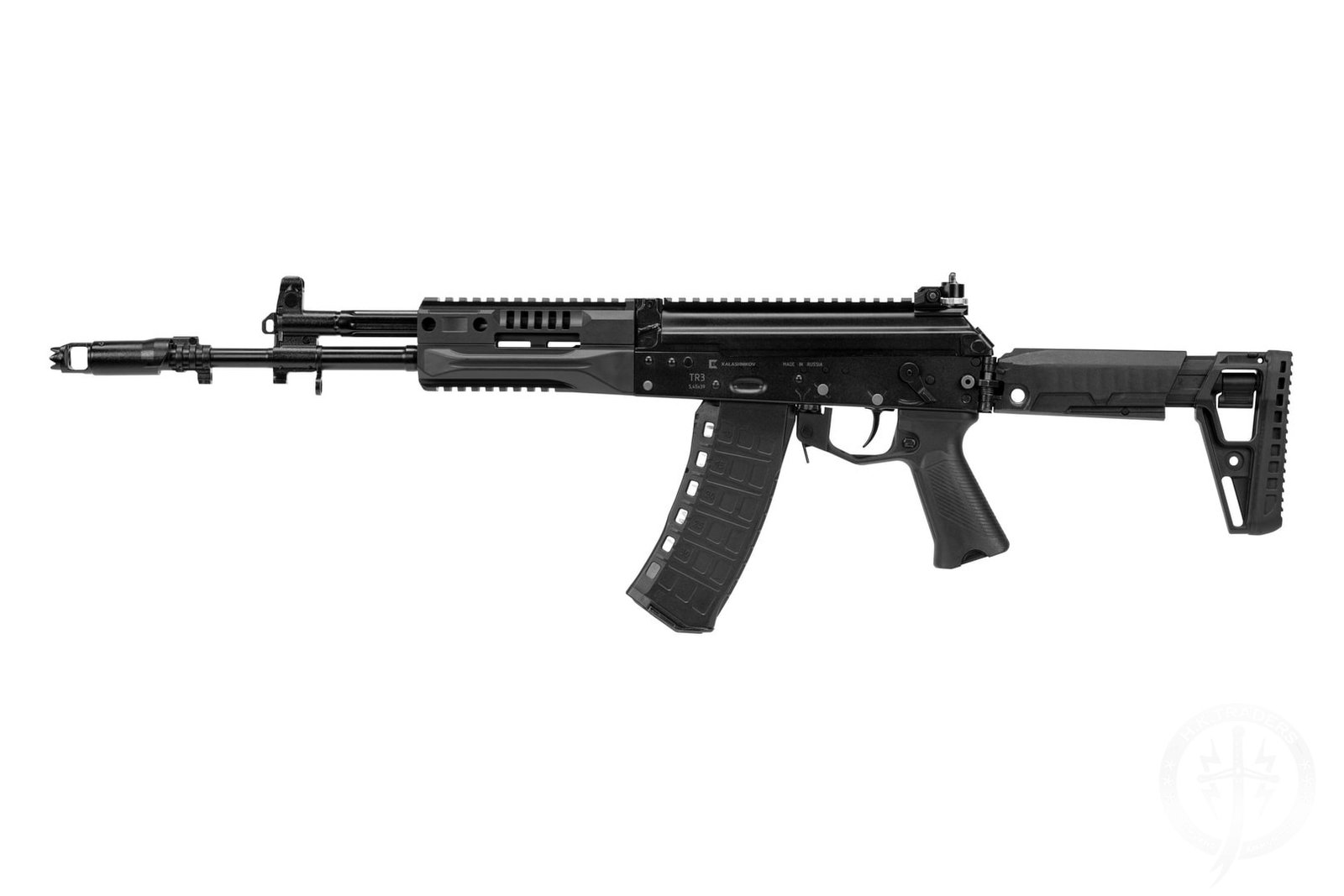

TR3 Semi-automatic carbine with folding stocks inspired by the new AK-12 assault rifle
Description

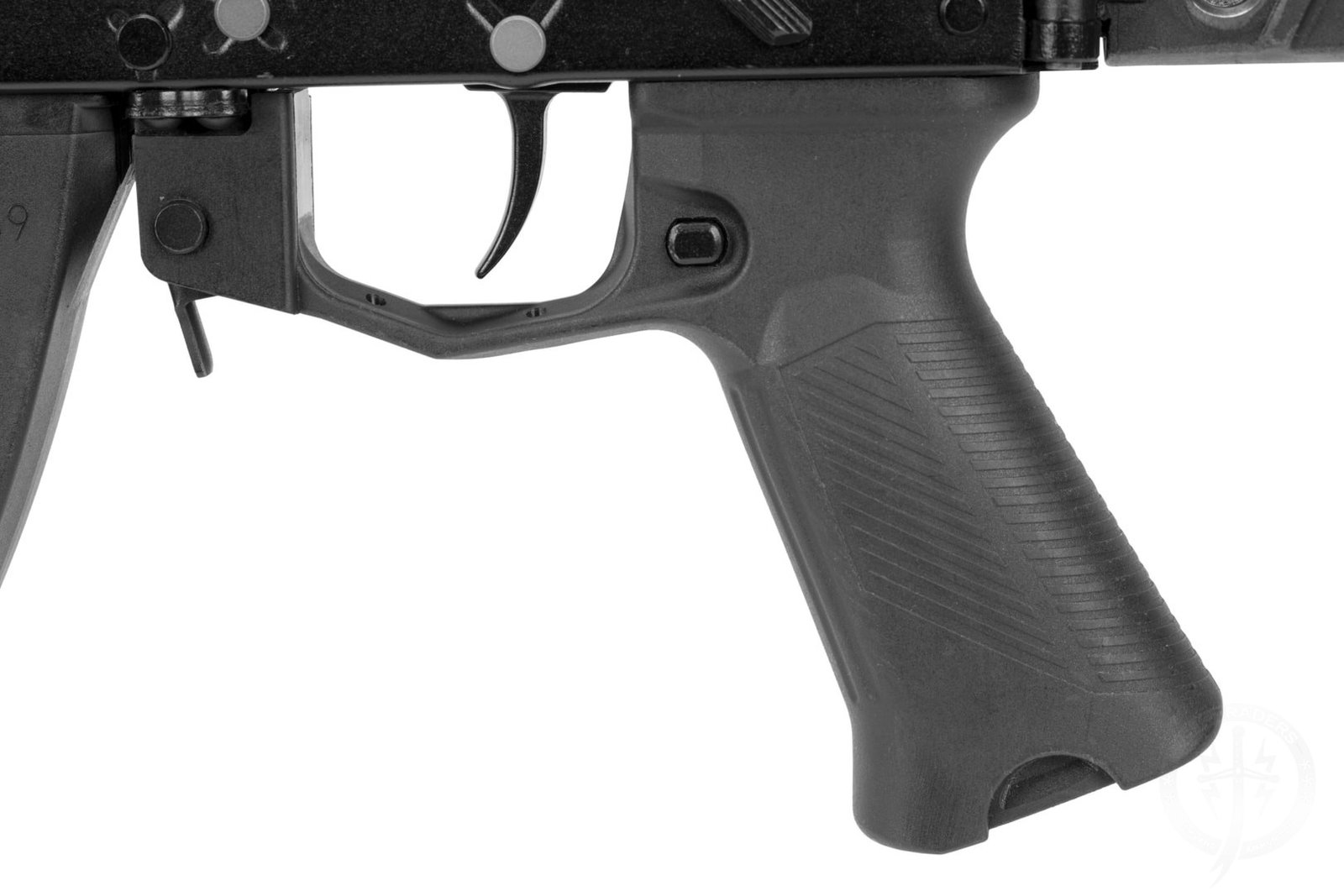

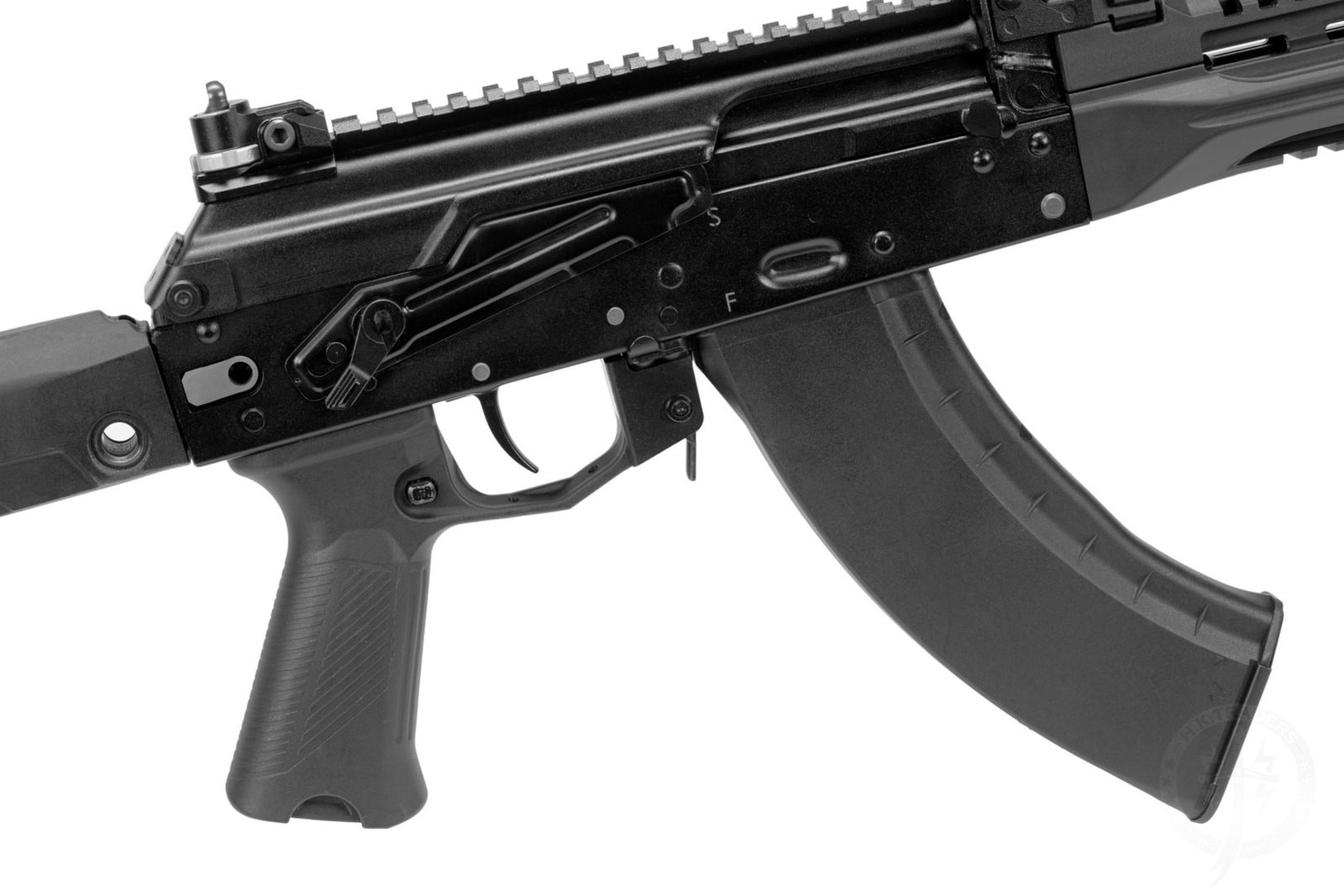

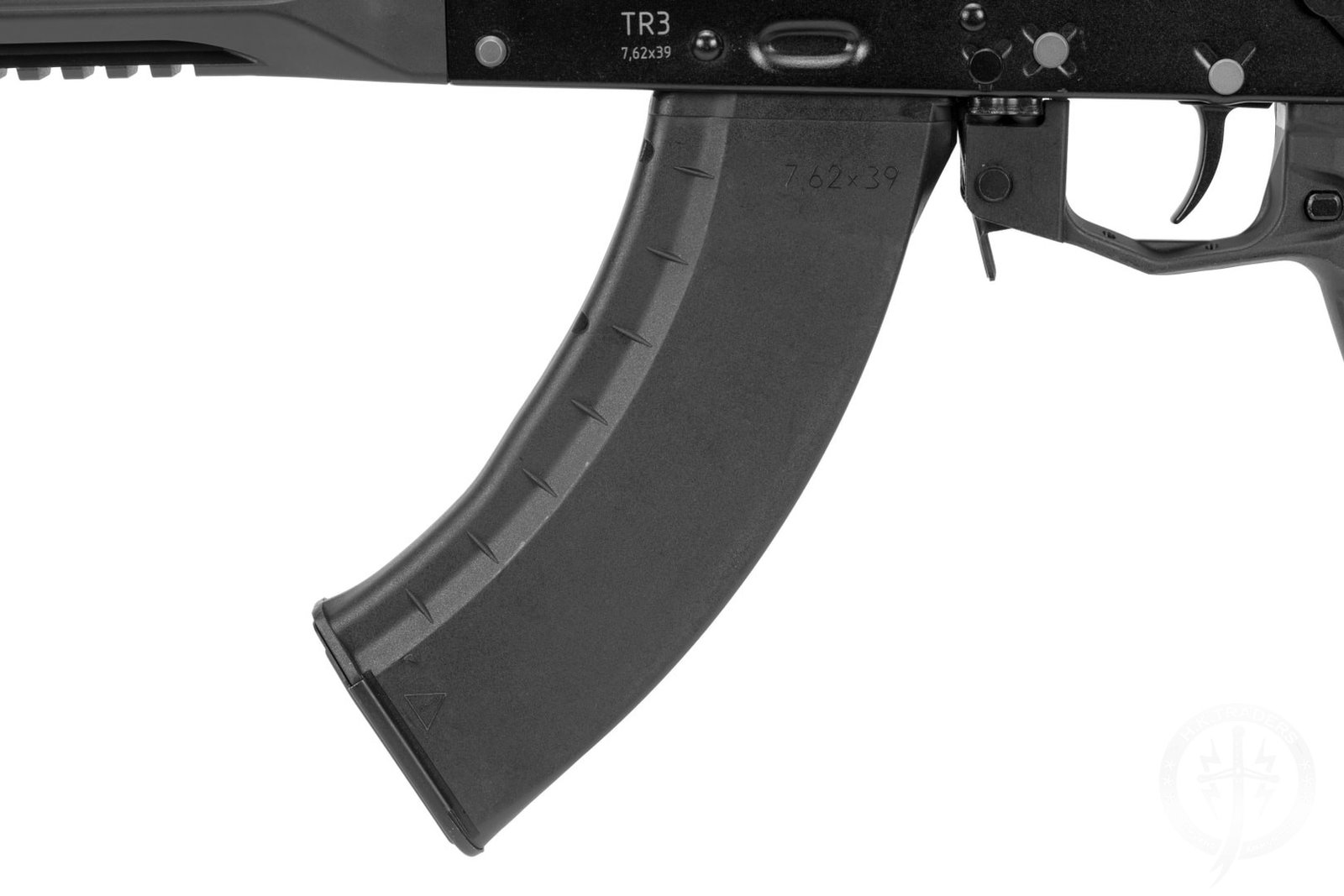

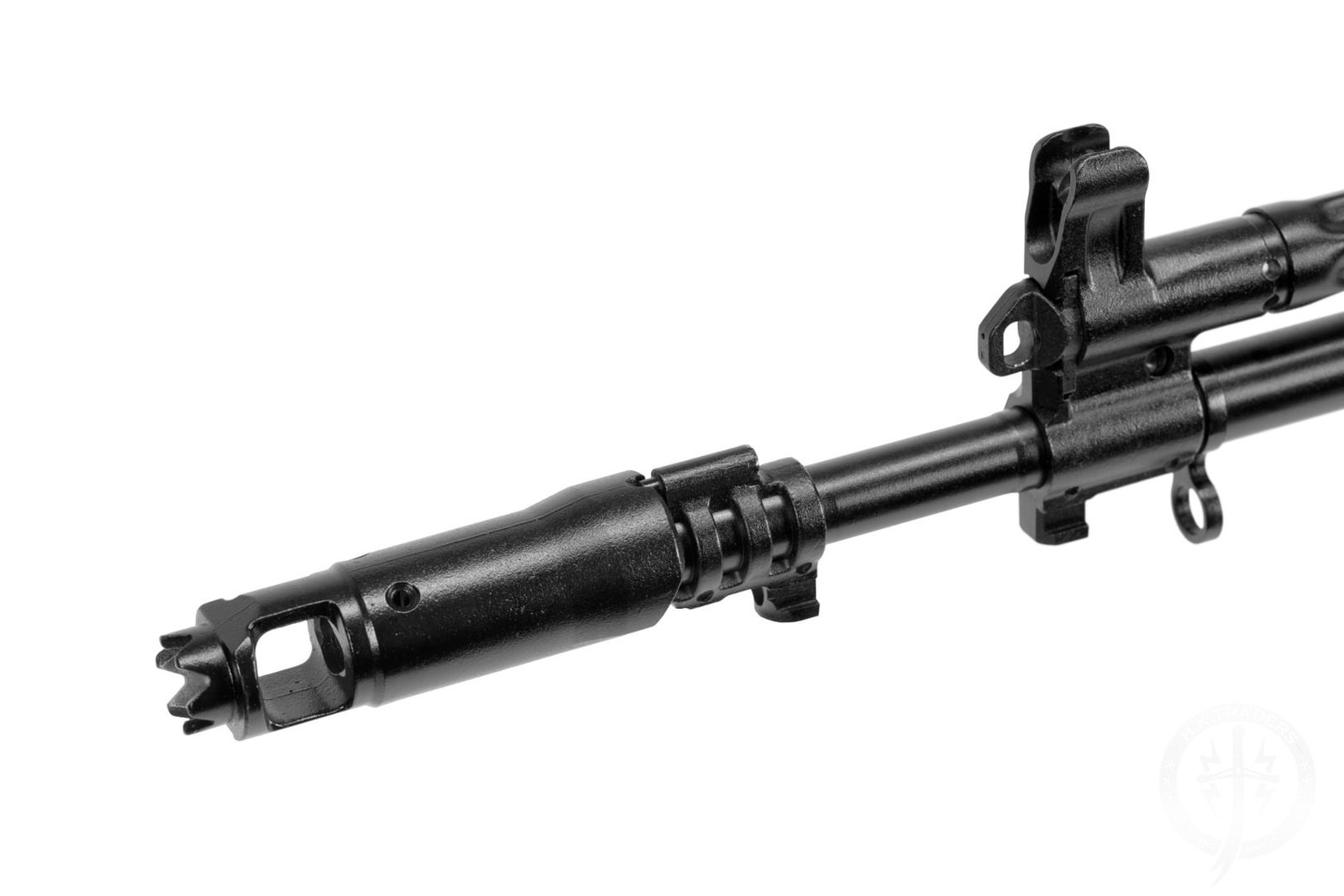

Receiver cover has an integrated 1913-MIL-STD rail for simple installation of red dot and optical sights. Buttstock, handguard, pistol grip and magazines are made of impact resistant polymer. Weapon has an effective muzzle brake/compensator. Trigger mechanism is automatically blocked when buttstock is folded. Each rifle is equipped with 10-round magazine in 30-round body.
Caliber, mm ———————————————————- 5.56 mm
Cartridge used ——————————————————- .223 Rem
Weight (with empty magazine), kg——————————– 3,7 kg
Length with the buttstock unfolded, mm————————-880 / 940 mm
Barrel length, mm—————————————————415
Quick barrel replacement——————————————-No
Number of locking lugs———————————————-2
Operation type——————————————————-Long stroke gas piston
Fire modes———————————————————–Single
Last round bolt hold open availability and location————-No
Iron sights type——————————————————Closed / diopter

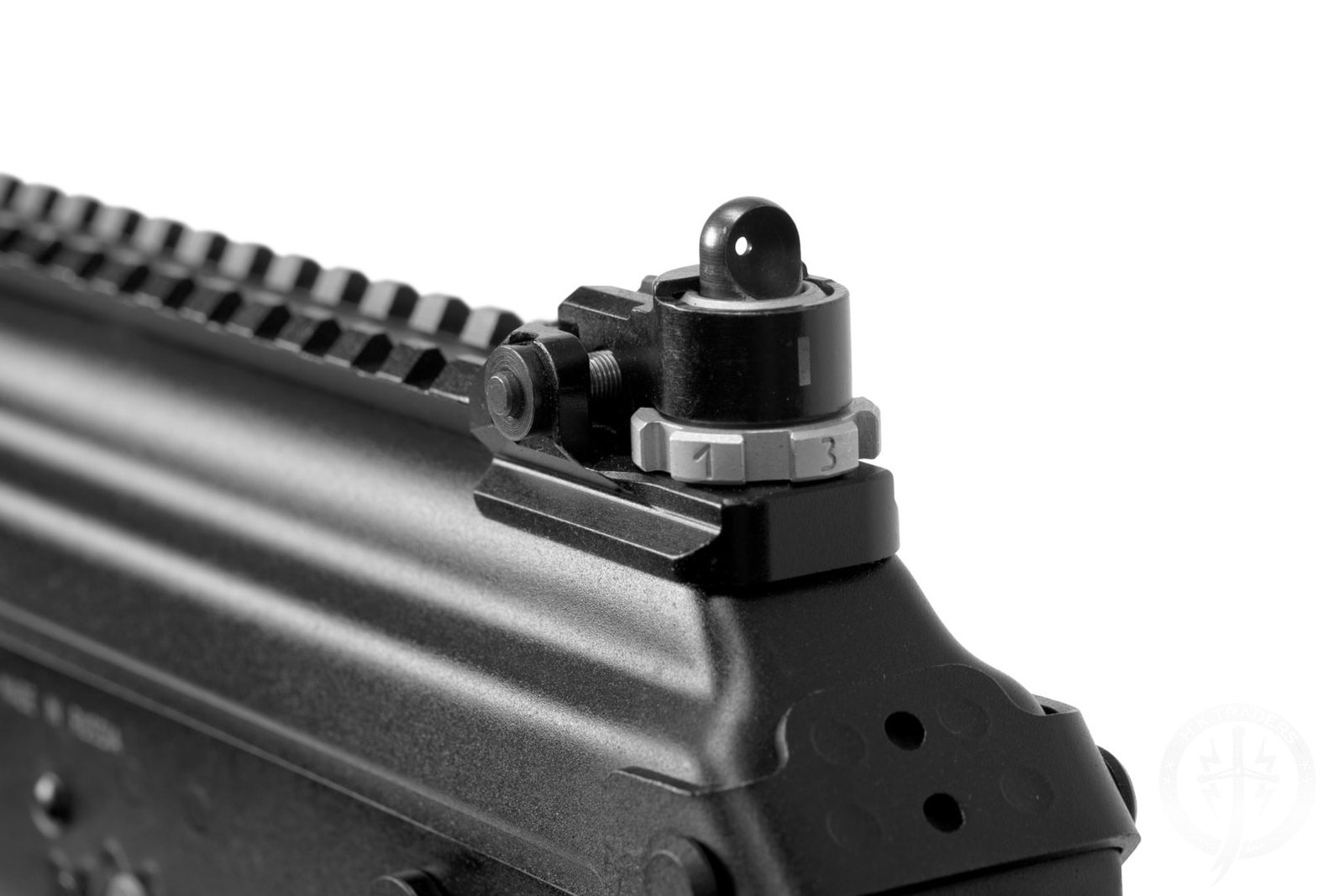

Rear sight adjustment lines—————————————-Drum with 1, 3, 6, 7, 8 and P positions

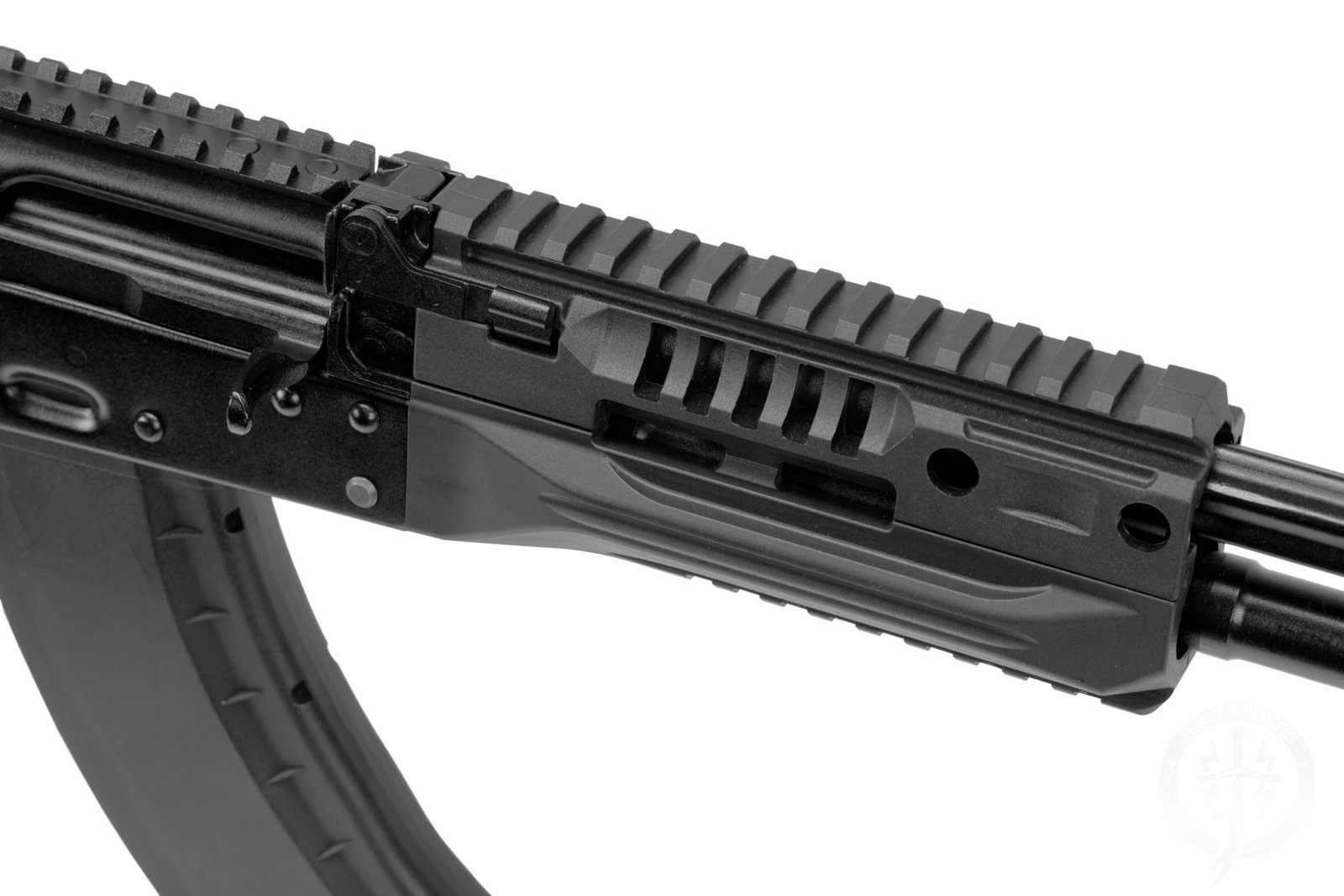

Mount for telescopic sights—————————————–Picatinny rails on the dust cover and upper handguard
Option to install clip-on telescopic sights————————-Yes
Mounts for additional equipment ———————————Picatinny rails on the dust cover, below and on the sides (removable)
Trigger mechanism type——————————————–Single-action, hammer
Adjustable trigger pull weight, N———————————-No

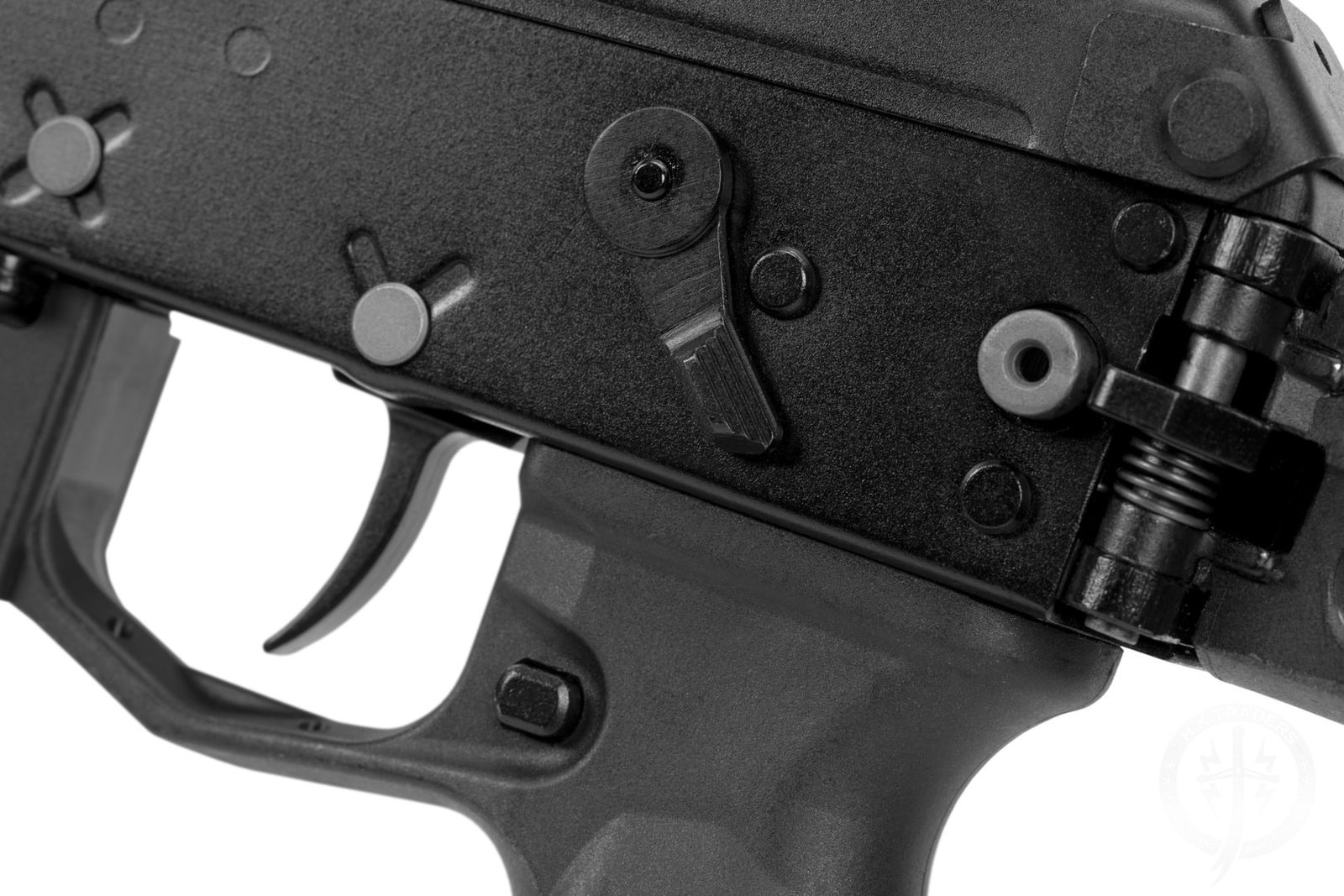

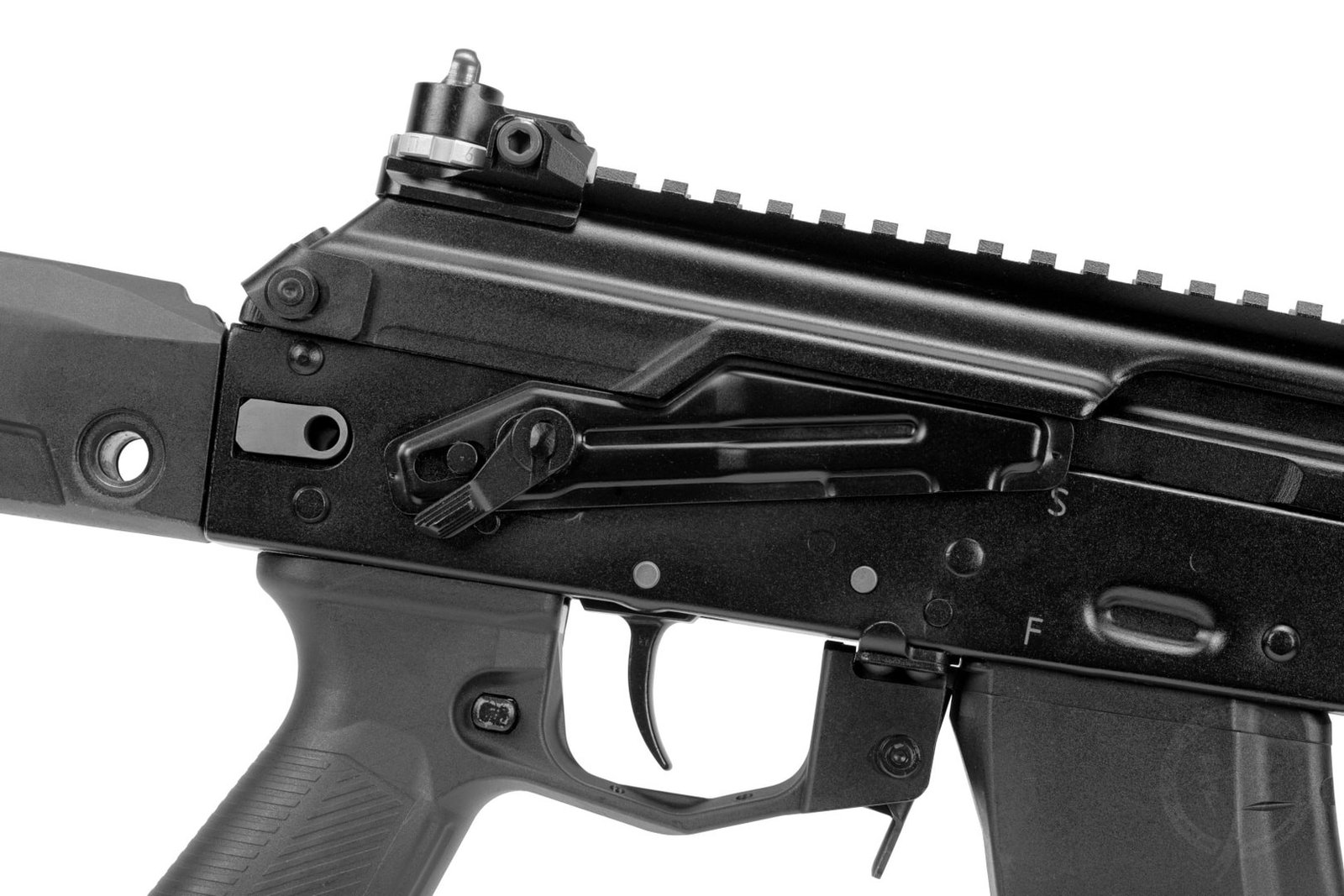

Safety switch———————————————————Single-side, right

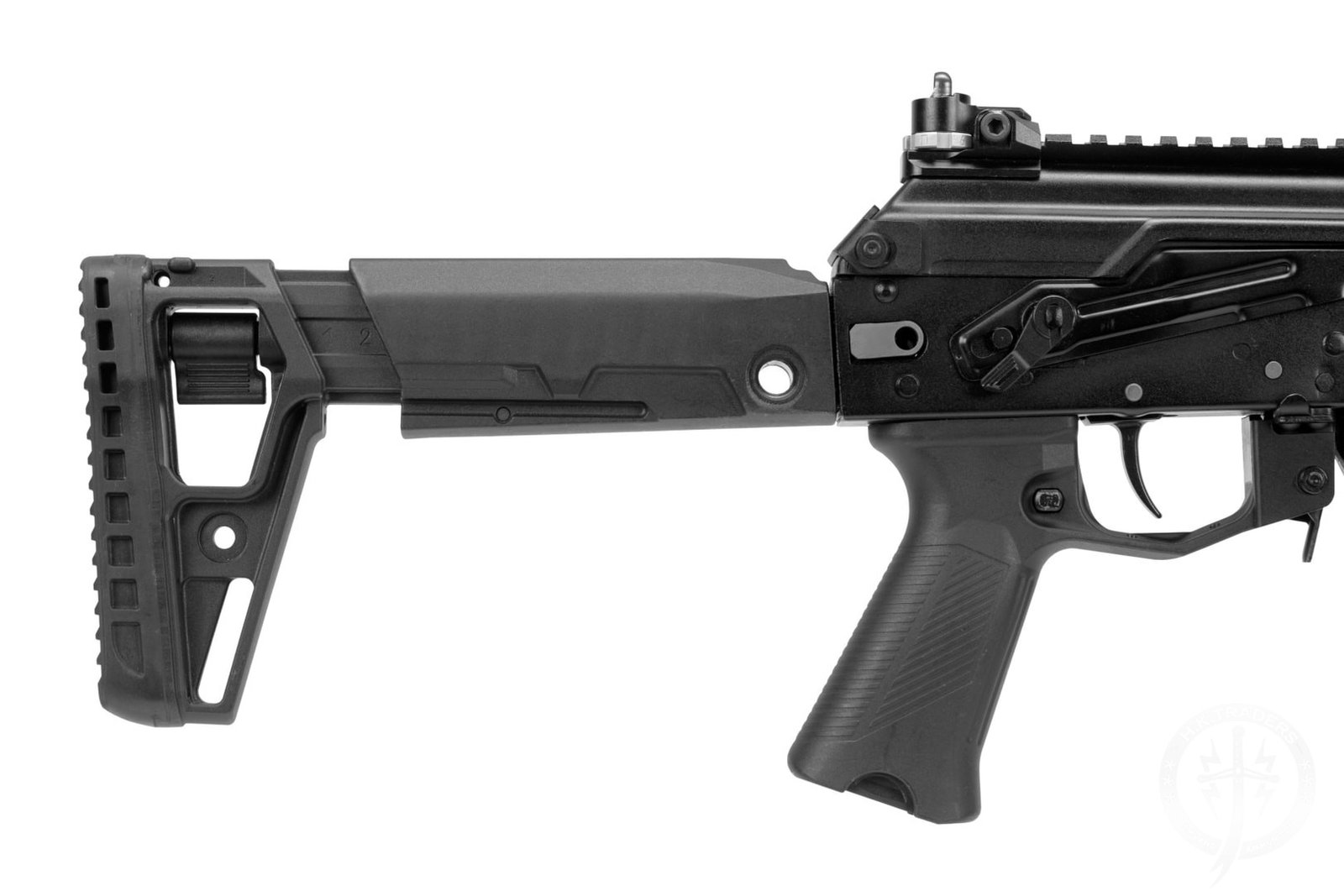

Buttstock————————————————————-Folding / polymer / adjustable
Optional bayonet—————————————————-Yes
Standard-issue bipod———————————————–No
Cleaning rod———————————————————Yes / collapsible / in the handguard
Cleaning kit———————————————————-Yes / in the pistol grip
