Description

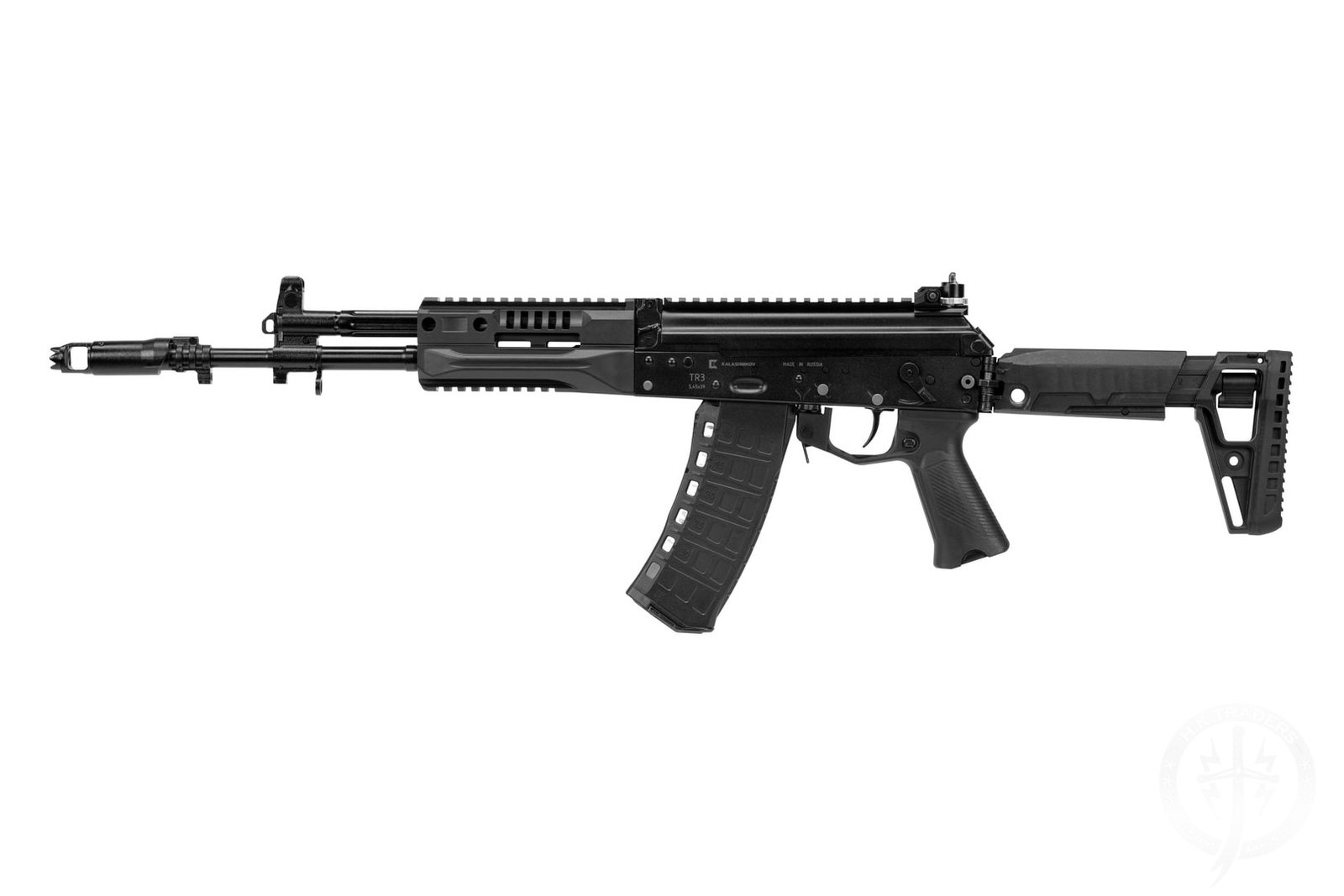

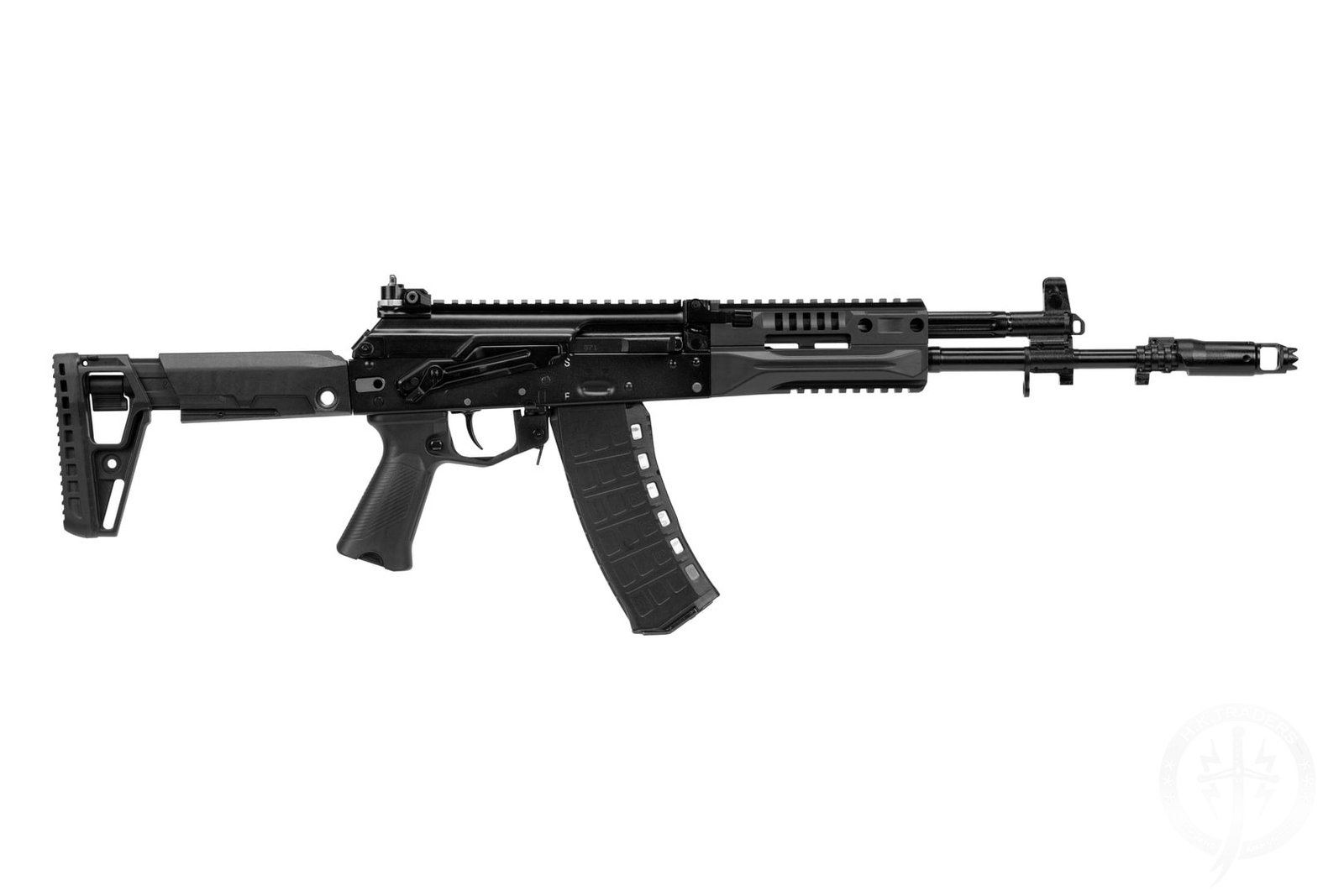

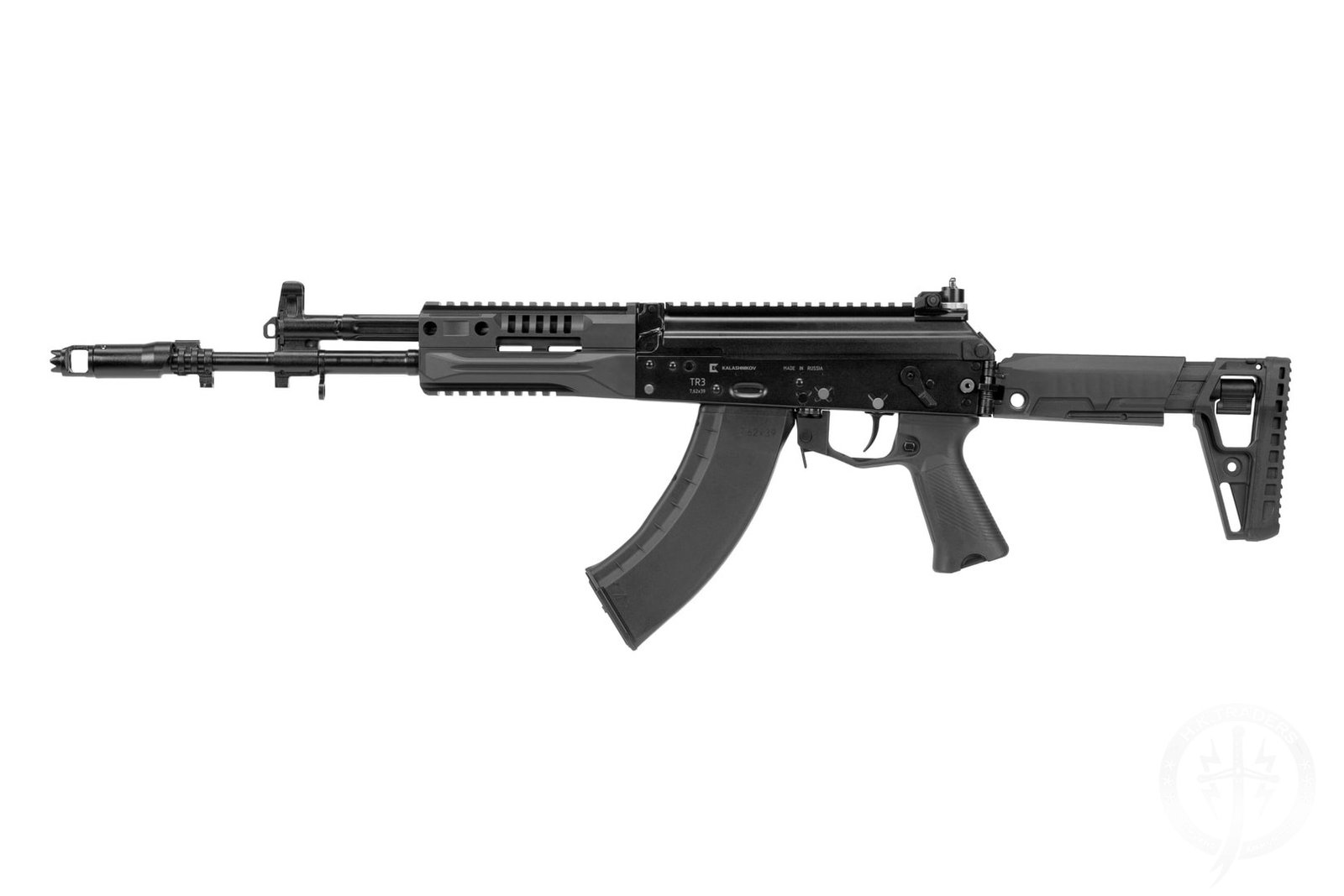

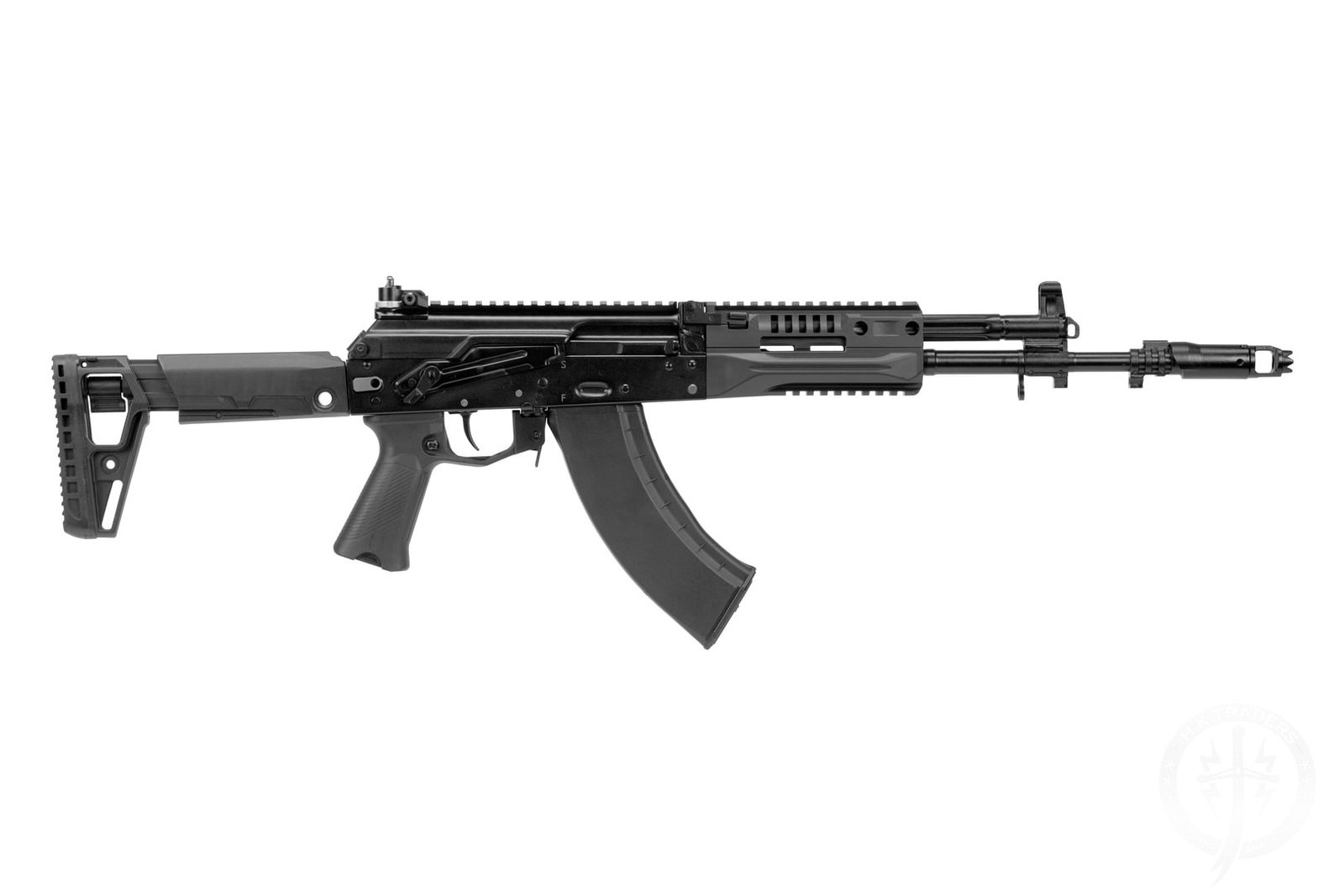

SAIGA AK-12 TR3 Semi-automatic carbine with folding stocks inspired by the new AK-12 assault rifle
Receiver cover has an integrated 1913-MIL-STD rail for simple installation of red dot and optical sights. Buttstock, handguard, pistol grip and magazines are made of impact resistant polymer. Weapon has an effective muzzle brake/compensator. Trigger mechanism is automatically blocked when buttstock is folded. Each rifle is equipped with 10-round magazine in 30-round body.
Specification
Caliber, mm_______________________5.45 mm / 7.62 mm / 5.56 mm
Cartridge used_______________________5.45×39 / 7.62×39 / .223 Rem
Weight (with empty magazine), kg_______________________3,8 kg / 3,8 kg / 3,7 kg
Length with the buttstock unfolded, mm_______________________880 / 940 mm
Barrel length, mm_______________________415
Quick barrel replacement_______________________No
Number of locking lugs_______________________2
Operation type_______________________Long stroke gas piston
Fire modes_______________________Single
Last round bolt hold open availability and location_______________________No
Iron sights type_______________________Closed / diopter
Rear sight adjustment lines_______________________Drum with 1, 3, 6, 7, 8 and P positions
Mount for telescopic sights_______________________Picatinny rails on the dust cover and upper handguard
Option to install clip-on telescopic sights_______________________Yes
Mounts for additional equipment _______________________Picatinny rails on the dust cover, below and on the sides (removable)
Trigger mechanism type_______________________Single-action, hammer
Adjustable trigger pull weight, N_______________________No
Safety switch_______________________Single-side, right
Buttstock_______________________Folding / polymer / adjustable
Optional bayonet_______________________Yes
Standard-issue bipod_______________________No
Cleaning rod_______________________Yes / collapsible / in the handguard
Cleaning kit_______________________Yes / in the pistol grip
